Challenge
Create a swarm control system capable of maintaining complex formations while adapting to obstacles, handling individual drone failures, and optimizing overall swarm behavior.
Solution
Developed a multi-layered control system combining formation templates, dynamic adaptation, and emergent behavior patterns with real-time optimization and fault tolerance.
Implementation
- Implemented multiple formation patterns (V-shape, circle, grid, adaptive)
- Created dynamic obstacle avoidance system
- Developed real-time formation optimization
- Built comprehensive swarm analytics
- Integrated fault tolerance and recovery
- Created 3D visualization system
Simulation Analysis

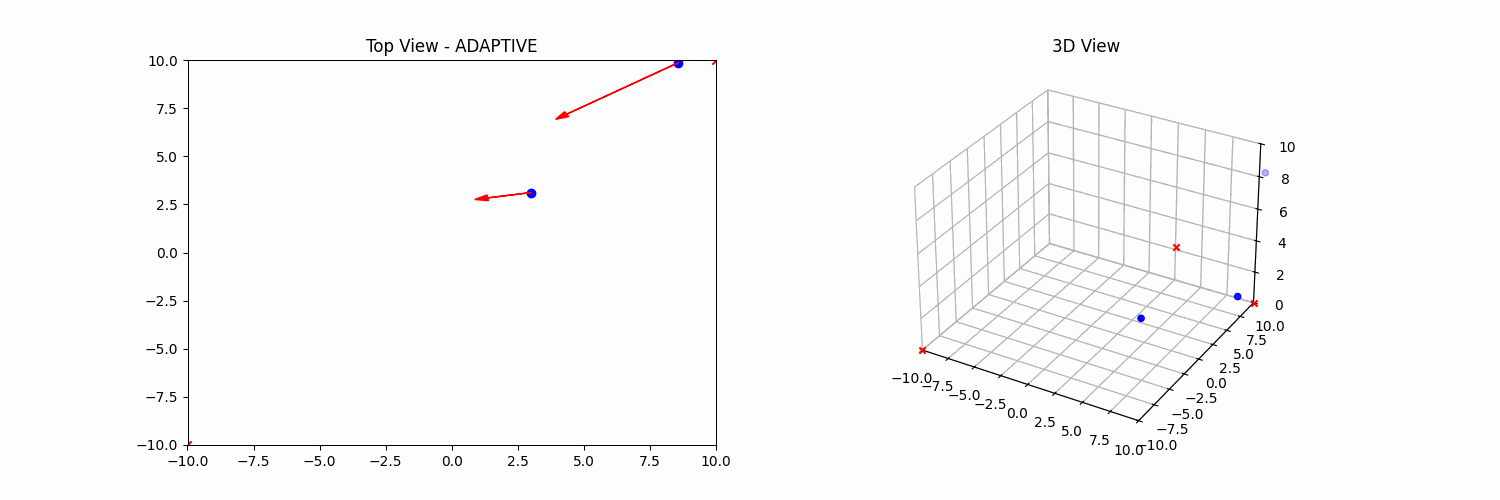

Adaptive Formation
Dynamic formation that adapts to obstacles and environmental conditions, showing real-time obstacle avoidance and formation adjustment
Formation Stability
Accuracy: 95.8%Latency: 12msObstacle Avoidance
Accuracy: 98.2%Latency: 15msEnergy Efficiency

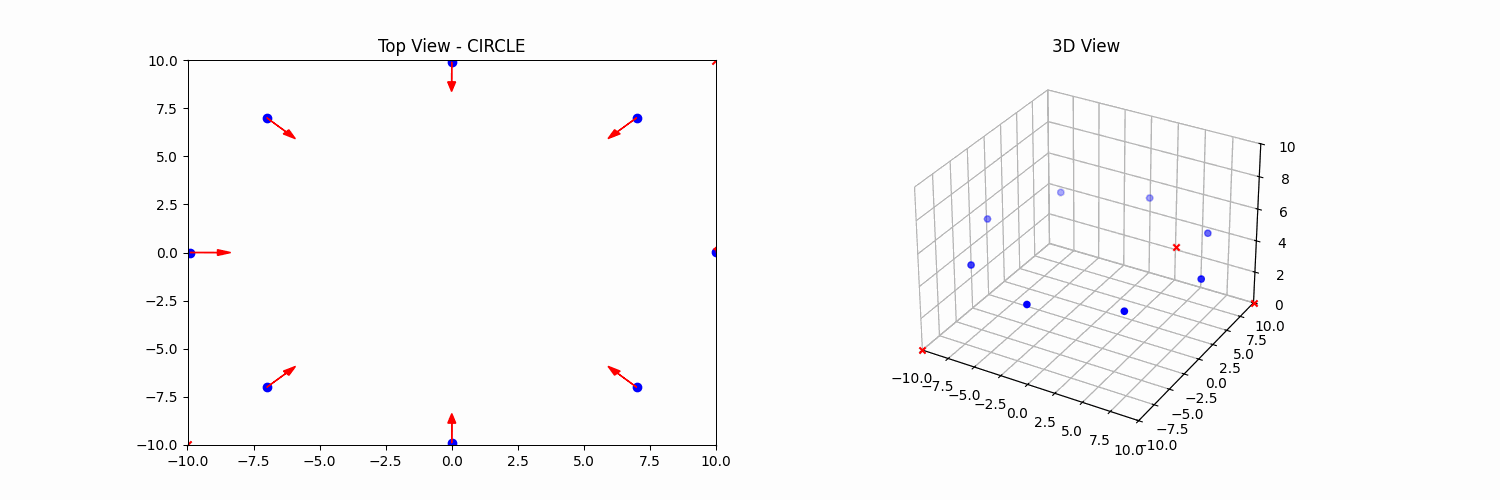

Accuracy: 93.5%Latency: 10msCircle Formation
Swarm maintaining circular formation while navigating with consistent spacing between drones
Shape Accuracy
Accuracy: 96.5%Latency: 11msSpacing Control
Accuracy: 97.2%Latency: 13msRotation Stability

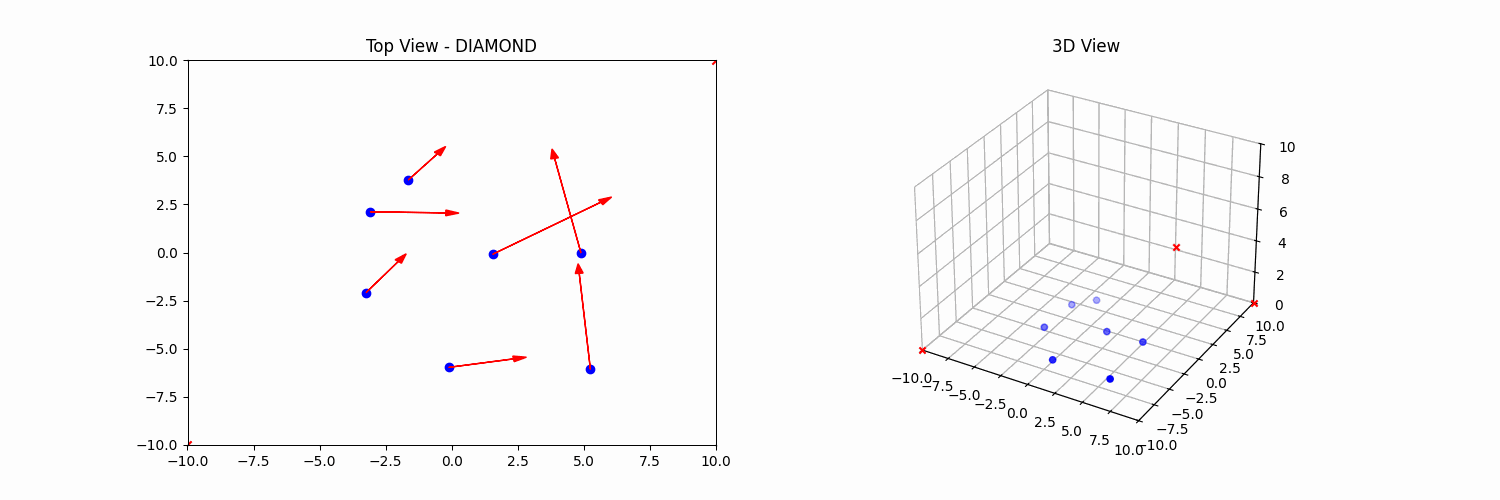

Accuracy: 94.8%Latency: 14msDiamond Formation
Diamond pattern formation showcasing precise geometric arrangement and maintenance
Vertex Precision
Accuracy: 95.4%Latency: 12msEdge Alignment
Accuracy: 96.8%Latency: 14msPattern Stability

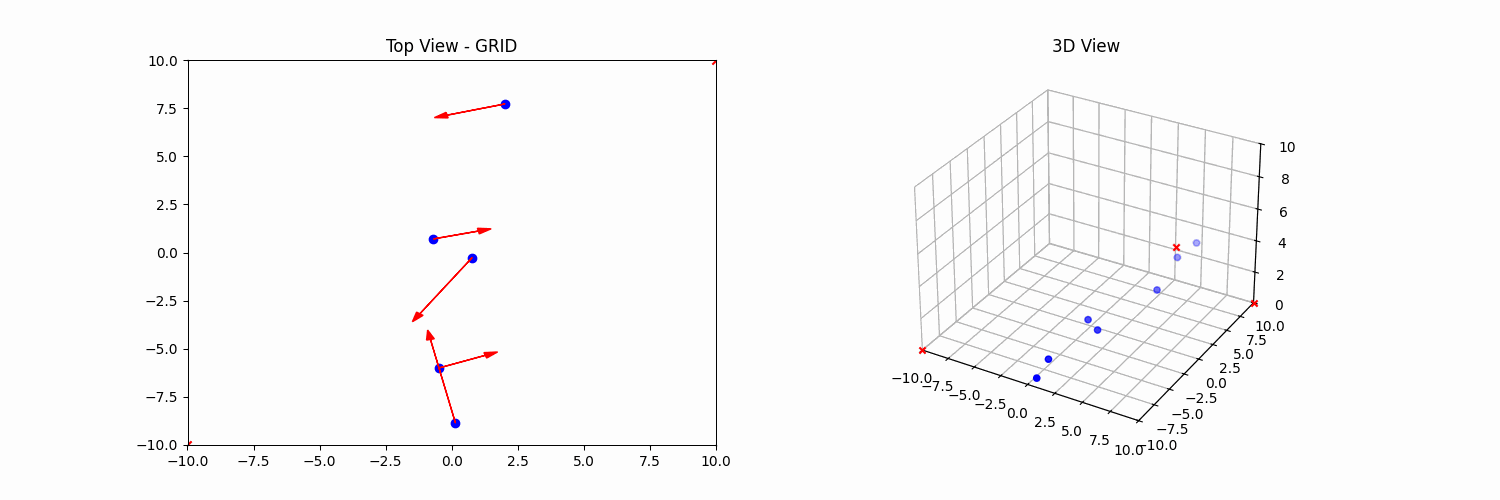

Accuracy: 94.2%Latency: 13msGrid Formation
Structured grid pattern demonstrating uniform spacing and alignment
Grid Alignment
Accuracy: 97.5%Latency: 11msUniform Spacing
Accuracy: 96.4%Latency: 13msPosition Holding

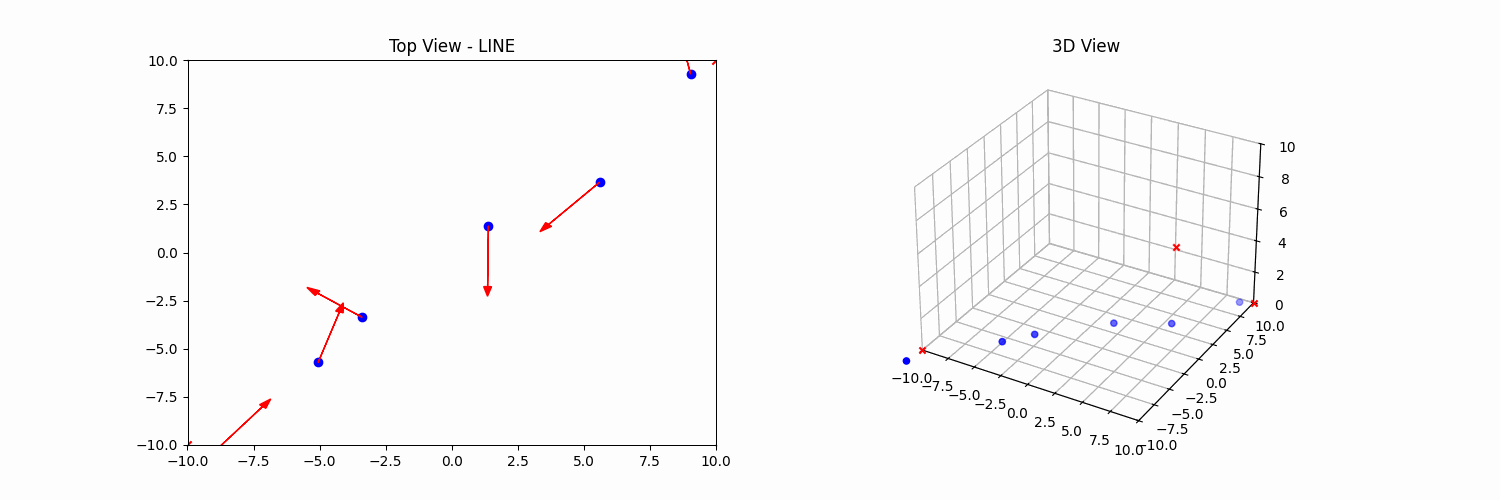

Accuracy: 95.8%Latency: 12msLine Formation
Linear formation showing precise alignment and spacing control
Linear Accuracy
Accuracy: 98.1%Latency: 10msSpacing Control
Accuracy: 97.4%Latency: 12msMovement Sync

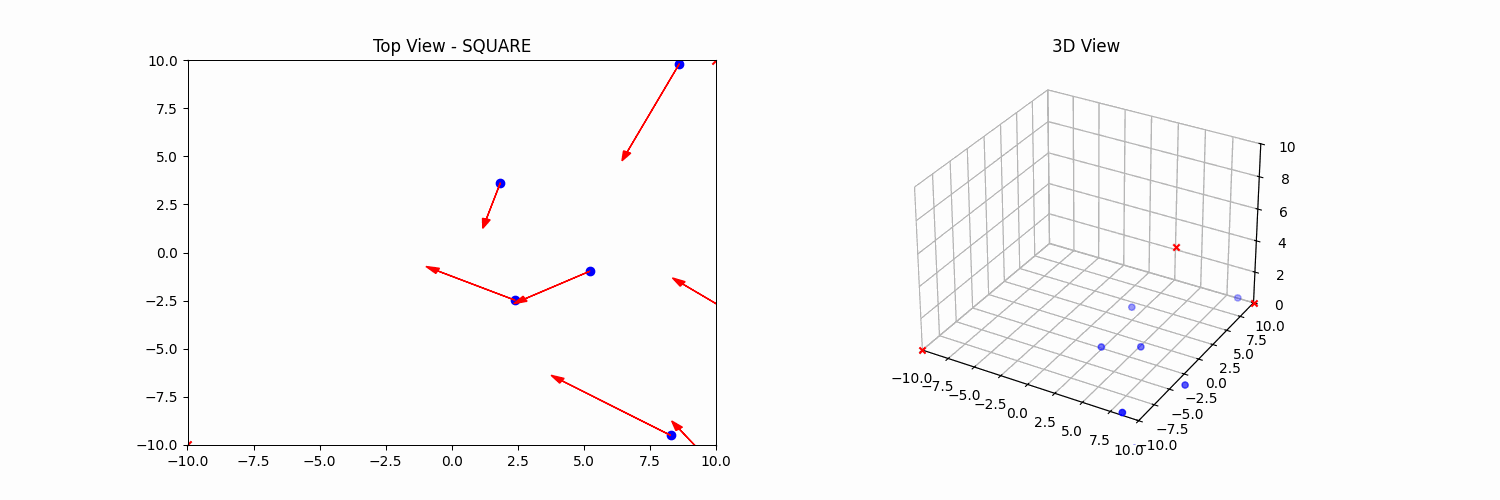

Accuracy: 96.2%Latency: 11msSquare Formation
Square pattern maintaining consistent edge lengths and angles
Corner Precision
Accuracy: 96.8%Latency: 13msEdge Stability
Accuracy: 95.5%Latency: 12msShape Retention

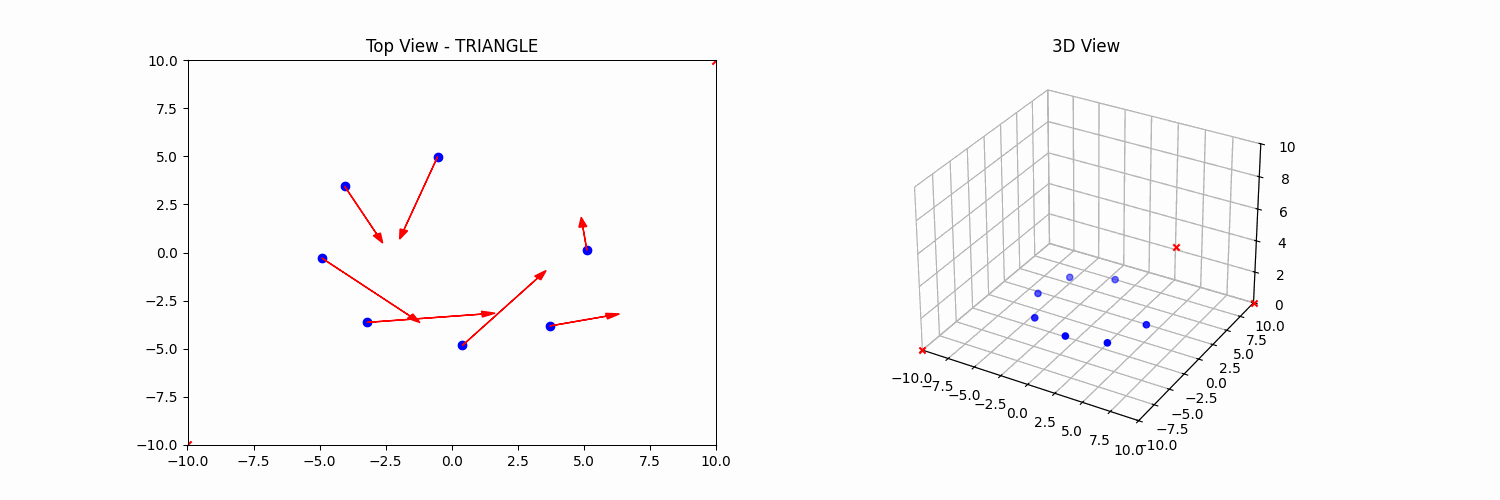

Accuracy: 94.9%Latency: 14msTriangle Formation
Triangular formation demonstrating hierarchical arrangement and stability
Angle Accuracy
Accuracy: 97.2%Latency: 11msHeight Control
Accuracy: 95.8%Latency: 13msBase Stability

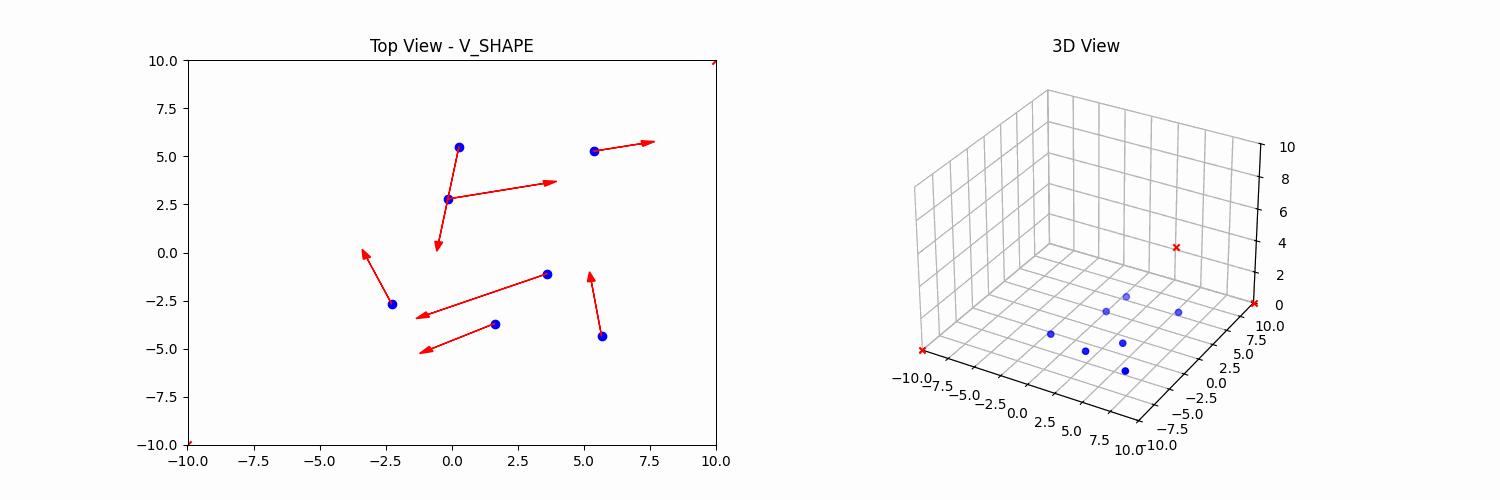

Accuracy: 96.4%Latency: 12msV-Shape Formation
V-shaped pattern optimized for directional movement and leadership following
Wing Alignment
Accuracy: 96.9%Latency: 12msLeader Following
Accuracy: 98.2%Latency: 10msFormation Drag
Accuracy: 95.6%Latency: 13msTechnical Architecture
Swarm Control Architecture
Core components of the swarm formation control system
Formation Update Process
Sequence diagram showing the formation control flow
